SimpleFOC SmartDriver v1.0

Valentine · February 15, 2022, 2:32am

Fresh off the fab. Small!

This is a MOSFET driver, not a motor driver.

This is one of my lunch break designs.

I’ll test when I get the time.

zhangzq71 · February 15, 2022, 1:44pm

why didn’t use STSPIN32F0 for smaller size?

runger · February 15, 2022, 3:00pm

The STSPIN32F0 has only 4K RAM, 32K Flash. It is hard to fit SimpleFOC into this MCU.

Valentine · February 15, 2022, 4:27pm

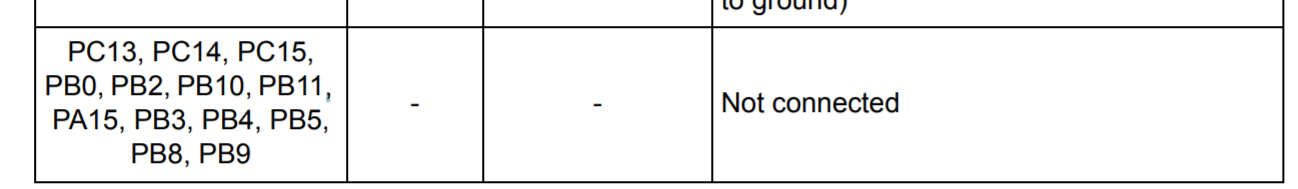

At that size of the PCB the size is not important. STSPIN32F0 you mention is not in stock, memory too small and many of the pins are not exposed.

Also the size saving is not significant, the chip is not small to begin with.

After you add the resonator and capacitors you end up with the same size.

Valentine · February 15, 2022, 5:14pm

The heat generated by the drivers when I program the board is not acceptable. I’m not sure what the cause of this heat is. I’m only powering the MCU to flash it with SWD.

This shows the hidden problems of doing virgin design based on specs only.

I’ll check what the source of that overheating is.

runger · February 15, 2022, 9:48pm

I really want one of those cameras!
