This thread is an indirect continuation of this one:
Motor drive for sewing machine
Unfortunately, I have not yet received any feedback on my circuit.
I have now finished routing the circuit board. But I have no experience with routing power drivers.
The circuit board should be able to withstand a continuous current of 12A.
Here are the data sheets for the main components:
Layer structure:
Top (1oz): Signals
Inner1(0.5oz) GND
Inner2(0.5oz) GND
Bottom: (1oz): Signals

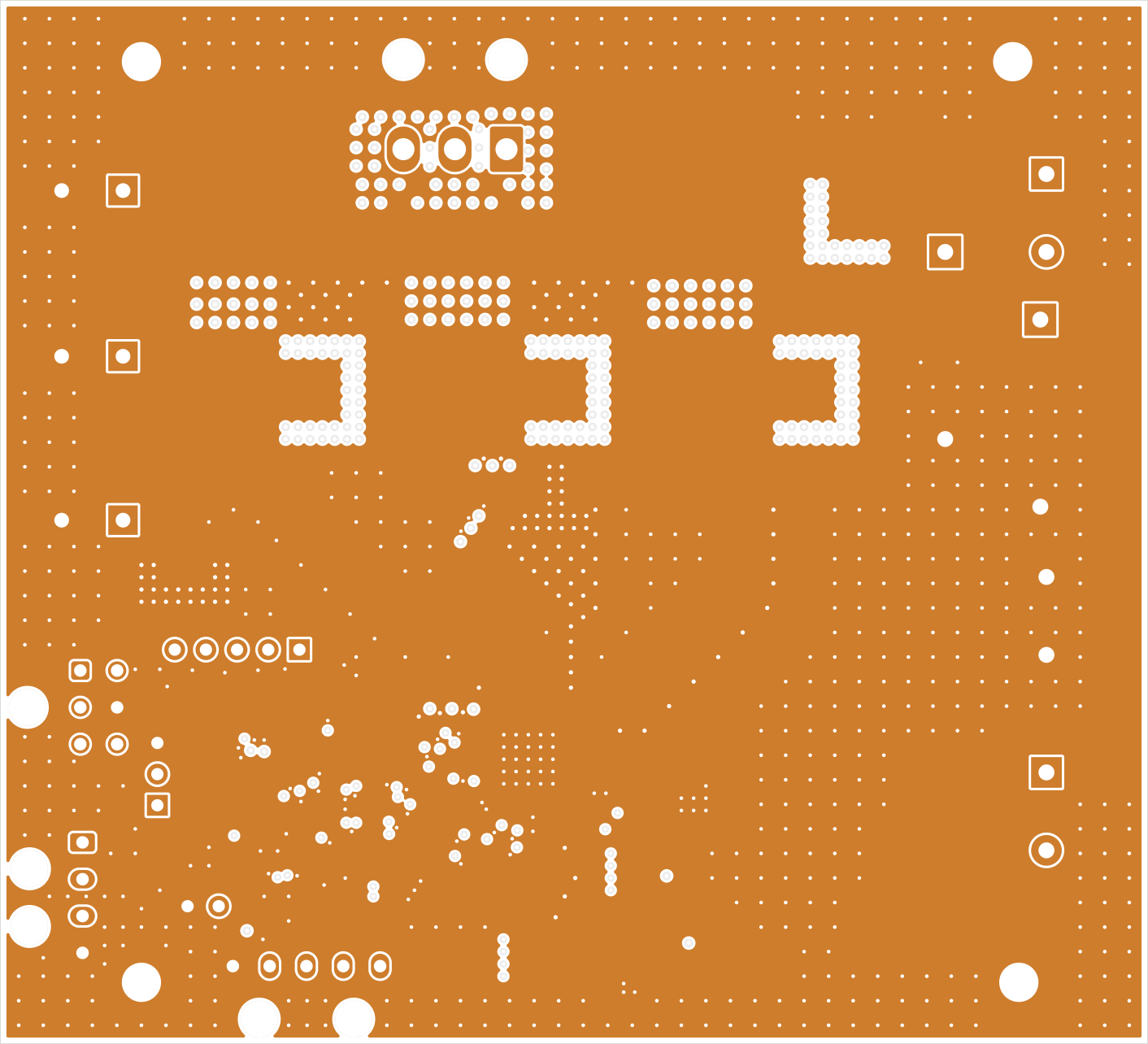

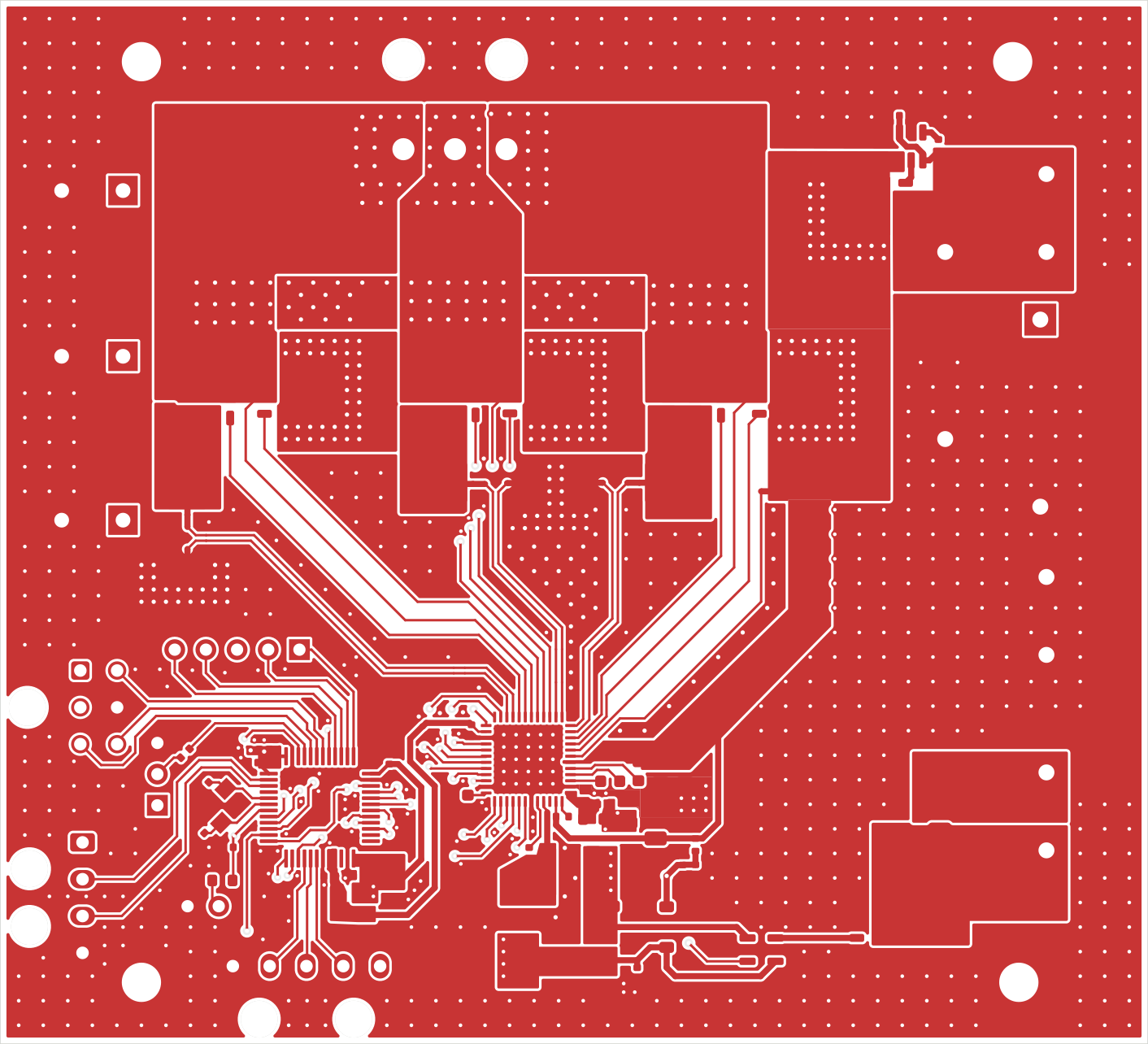

Pictures of the circuit diagram and the PCB:
