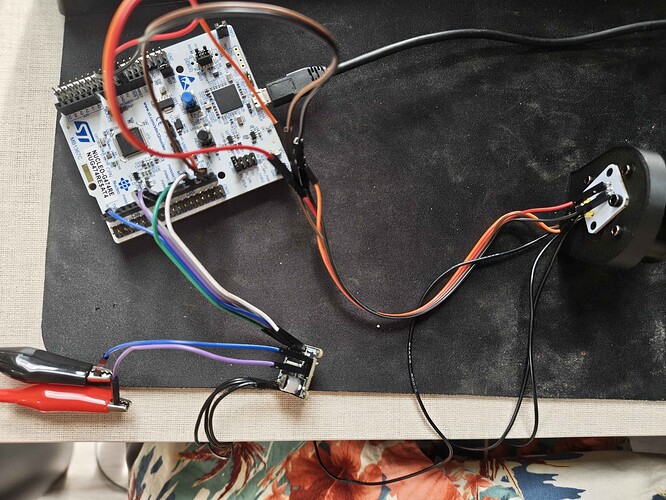

Hello, I am quite new to BLDC control. I have some kind of problem when trying to set up position control on a GM3506 BLDC motor. I have a 12V supply to the driver, I use SimpleFOC Mini V1.0,AS5600 Magnetic encoder, STM32 Nucleo G474RE board and GM3506 bldc motor.
I have tested all of the components separately; however, when I try to do position control, after the initialisation, the motor gets stuck at random positions, sometimes it tries to move when I set a new target, but in general it does not move at all and does not follow the target. The encoder seems to give correct values. I was able to run Open Loop control, and I also found poles using a simpleFOC script, which matched the documentation.
The code I use for Position control:
#include <Wire.h>
#include <SimpleFOC.h>
BLDCMotor motor = BLDCMotor(11);
BLDCDriver3PWM driver = BLDCDriver3PWM(PA8, PA9, PA10, PA6);
TwoWire myWire(PB9, PB8); // AS56000 sensor
MagneticSensorI2C sensor = MagneticSensorI2C(AS5600_I2C);
Commander command = Commander(Serial);
void onAngleA(char\* cmd) { command.scalar(&motor.target, cmd); }
void setup() {
Serial.begin(115200);
while(!Serial);
myWire.begin();
Wire.setClock(400000);
sensor.init(&myWire);
motor.linkSensor(&sensor);
driver.voltage_power_supply = 12;
driver.init();
driver.enable();
motor.linkDriver(&driver);
motor.controller = MotionControlType::angle;
motor.PID_velocity.P = 0.5;
motor.PID_velocity.I = 5;
motor.LPF_velocity.Tf = 0.02;
motor.P_angle.P = 20;
motor.velocity_limit = 4;
motor.voltage_limit = 10;
motor.voltage_sensor_align = 2;
motor.init();
motor.initFOC();
motor.target = sensor.getAngle();
command.add(‘A’, onAngleA, “set motor target \[rad\]”);
Serial.println(“Motor ready. Use command ‘A’ to set a new target angle.”);
}
void loop() {
sensor.update();
motor.loopFOC();
motor.move();
command.run();
static unsigned long t = 0;
if (millis() - t > 200) {
t = millis();
float currentAngle = sensor.getAngle();
Serial.print("Angle: ");
Serial.print(currentAngle, 3);
Serial.print(" Target: ");
Serial.println(motor.target, 3);
}
