Massage Gun Integrated Outrunners

I have been looking at off the shelf low cost brushless outrunners with minimal wiring and complexity and have been experimenting with the BLDCs from massage guns.

They put out good torque (~0.1Nm - 3000rpm), are controlled over PWM (seems to be a voltage control drive), and have an 6 pulse per rev output.

Cost on AliExpress is $4.50 USD (probably surplus), for brand new ones they go for about $15 USD.

The only IC on it is a Nuvoton MS51FB9AE 8 bit micro.

They are so close to being the holy grail for me, but the firmware has extremely sluggish acceleration parameters.

Just wondering if other people find this interesting, or if there’s another solution out there I haven’t considered for this type of thing!

1 Like

Are you think of programming that chip? I can’t find and arduino compatibility, so it would seem a challenge. I guess you could pull the ic off and use a different driver but then not so cheap.

Theres something useful on the board already. I can see the drivers and hall sensors.
Just add some jump wire to arduino and try it. You may able to drive it with only 3 PWM and 3 hall pin.

OOPS I got it wrong.

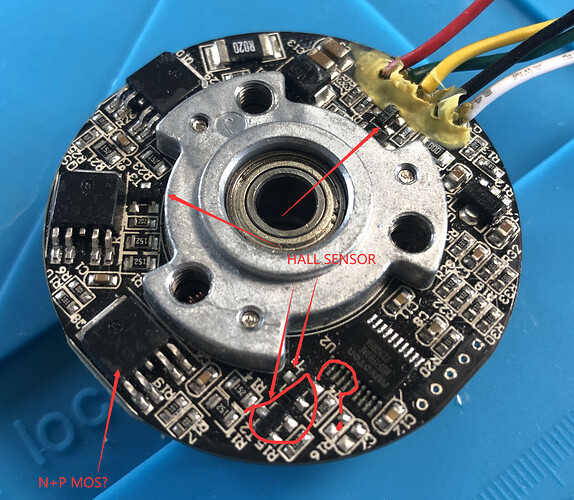

This is the hall.

Hi @AlexR-D,
It is awesome the price of 3.9€ ! What is the reference of Mos ? Could you read the part ref ?
The family MS51 was the top of the microcontroller at the time :slightly_smiling_face:.

That is an option, but probably doesn’t make sense for me from a time perspective - without Arduino it would take a considerable time investment to program it from scratch and reverse engineer everything on the board.

Unless I got the source code…

I know, it’s unbelievable they can sell at these prices. Are you asking about the mosfets? They are marked “XT 1948” which doesn’t yield much on google.

If I make any progress on convincing a Chinese factory to make me custom firmware I will report back - using this board just for commutation would let you run simpleFOC with just a microcontroller. Hall feedback is enough for many applications.

Any idea of the phase resistance of the windings?

HI,
the motor wiring looks like it is at “wye connection” (star connection), resistance between 2 lines is about 8.4 Ohm, so one phase is 4.2 ohms.
It’s for the BL4818, - there is also a BL5520 at Aliexpress and at Alibaba you can find offers for several different (bigger) sizes to.
Atm i have only the BL4818, which i want to mount to an planetary gear and use it as a “in wheel drive”.

1 Like

Cheers, Those are really cheap. I will nab some. How are you going about driving them now? Are you using whats on the Circuit board there or have something custom…for our swarm robots this would be great for a slightly larger robot.

Hi Adam,
i just use it with it’s onboard driver, which works fine for now. May be i need some differnet driver if the gearbox is adjusted.

You are talking about “swarm robots”… ?
The in wheel drive i’m working on is for little agriculture robots i’m thinking about…
