Next on my list, will start today…
Edit: i may have done the board wrong, so ill let you know. no results so far.

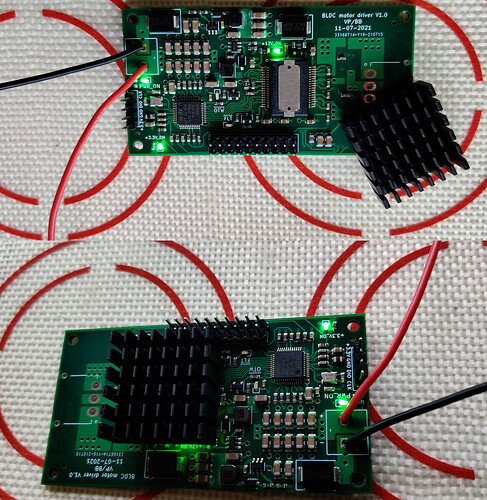

Finally after a month of delays and production issues and shortage and what not the board is complete, start testing.
That version doesn’t have the canbus transceiver yet.
Update1: Open loop looks great, I output 3A continuous at 20MHz, the board behaves better than I expected. I will not exceed 3A because I already burned one board (poor solder joints) and this is my backup, and soldering a complete board is a real pain. Heat sink is an absolute must at anything over 2A. Next is include the hall-current (ACS711) sensors into the test.

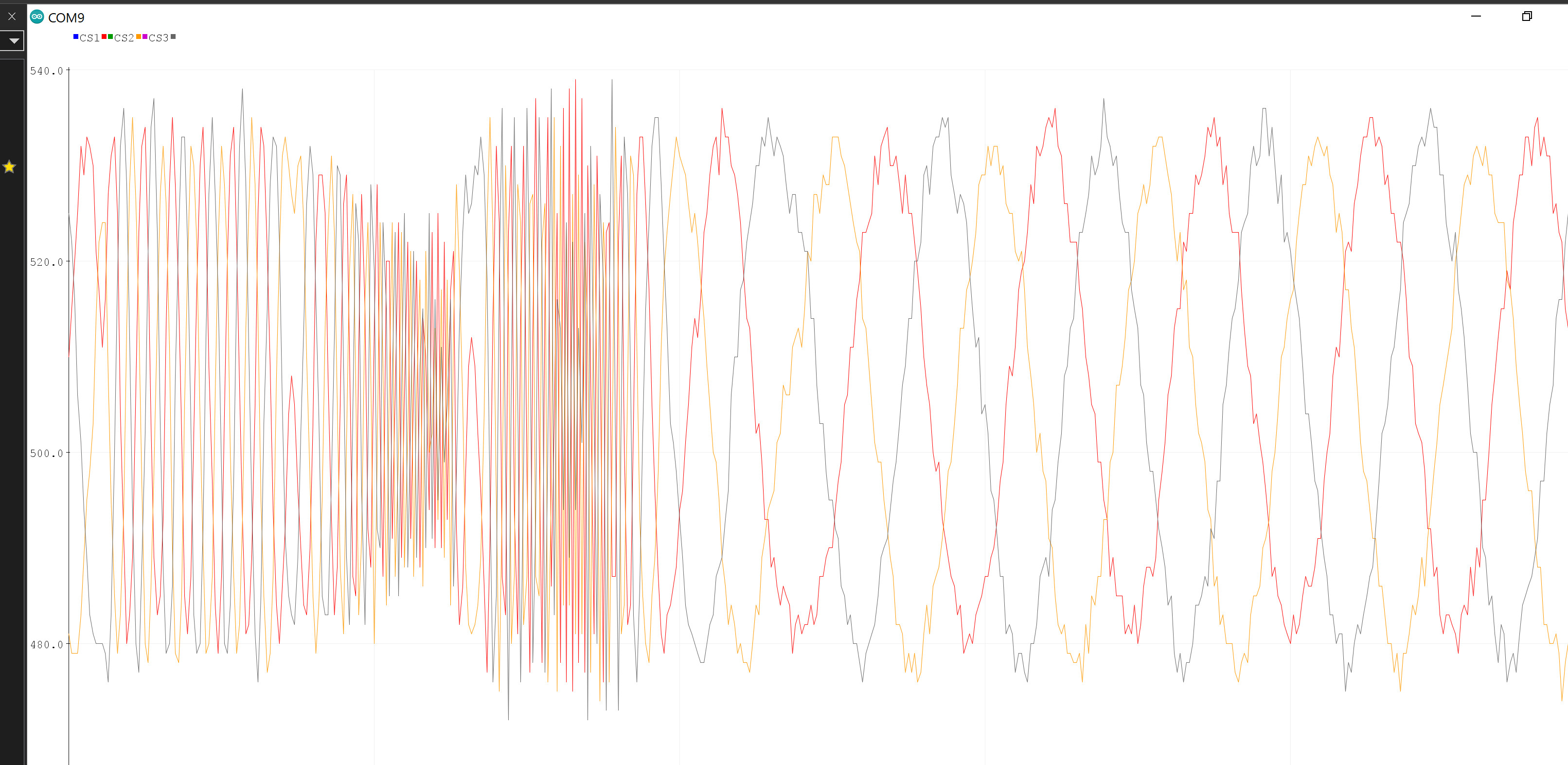

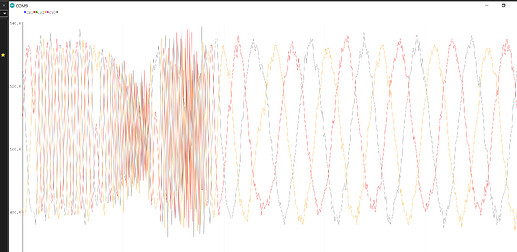

Update2: Current sensor with ACS711 sinusoidal, looks really good.
