Camera Gimbal - seeking advice

, ,
1

Good morning, this is my first post in this community. I am a software developer and I regularly build things in my free time, with an increasing share of projects including electronics.

I wanted to understand BLDC motors for a while and somehow the idea of building a camera gimbal was born. I got myself a few simplefoc mini 1.0 boards off AliExpress and more recently an iPower GM2804 motor and I have been able to set up open and closed loop control using a seeed xiao esp32-s3 that I had lying around. The gimbal would require 3 motors, which even an esp32-s3 with many ports broken out would not be able to handle, so I thought using 3 units of seeed esp32-s3 and simplefoc mini could be a possibility. Each unit would only have the task of controlling a single motor. The 3 units would sit on a simple custom PCB to reduce cable salad. Finally there would be a 4th controller reading from a bosch bno055 imu sensor that I already have from another project. That 4th controller would do the math of converting sensor orientation to motor angles and communicating those angles over UART to the 3 motor controller units.. Everything would fit into a reasonably sized handle.

My question is whether I am missing something that obviously will not work. Also I am not sure if the ~8V delivered by the 2 18350 batteries will be sufficient. Please let me know if you see general problems with the idea. Looking forward to your criticism.

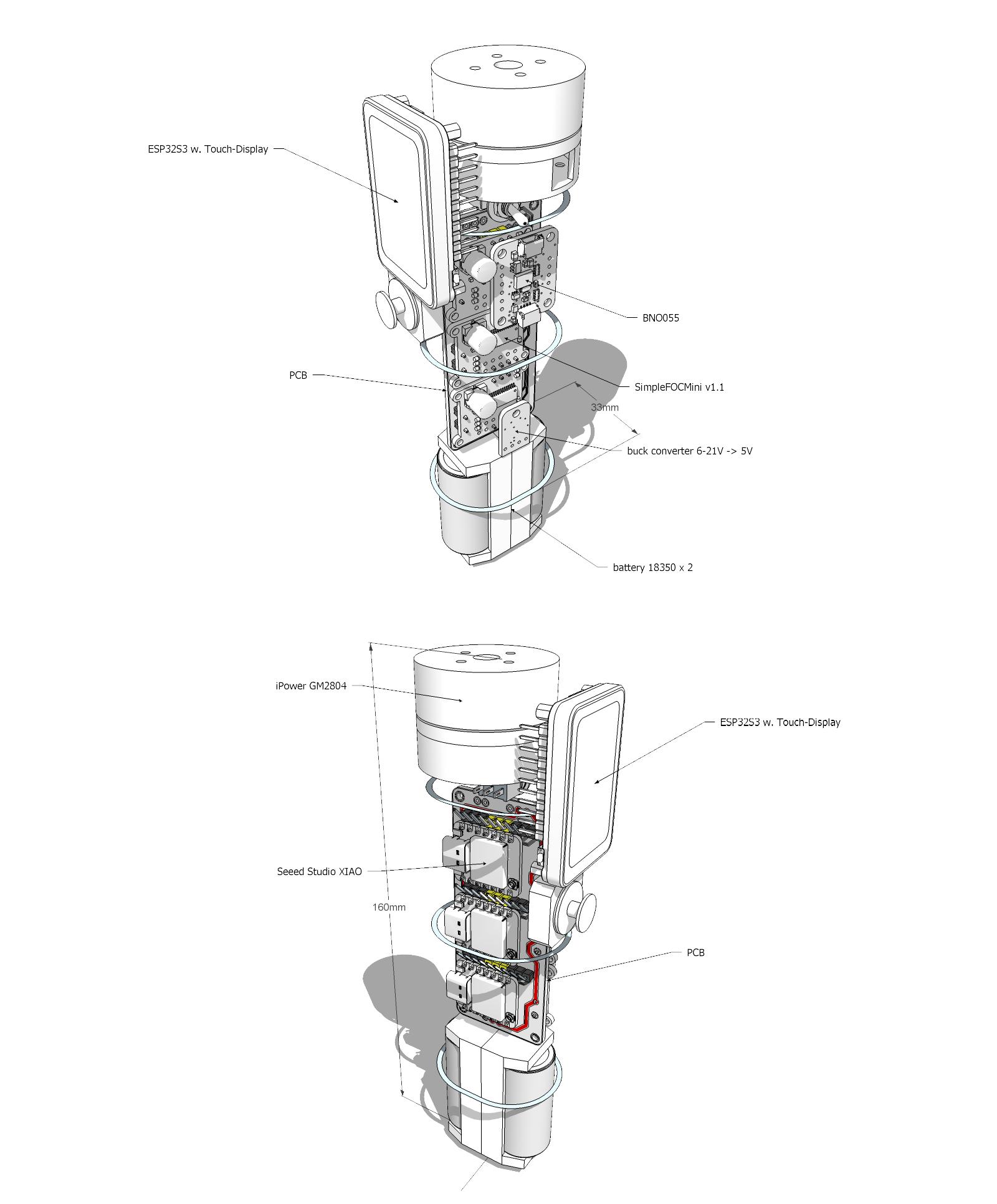

gimbal_draft_01a
gimbal_draft_01a1600×1932 245 KB

1 Answer

1
2

Hi and welcome,
I’d like to point out some (maybe obvious) things, that might become a problem:

  • No BMS for the Lithium cells? If you’re lucky, the buck converter switches off before you deep-discharge the battery…
  • UART communication? Does the main controller have three independent channels? If not, you might want to switch to SPI, where each ESP32 gets it’s own CS-pin
  • Camera weight and Center of gravity: I had good results with a tiny MobiusHD camera under my drone, but a GoPro or anything heavier was problematic. Of course you have to design the gimbal in such way, that the cameras COG matches the pivot points. (don’t underestimate the weight of the lens) Tha’t even more important with only 8V

Hi, thank you for your thought, time and answer. Not thinking about battery discharge was obviously a naive approach, thanks for pointing that out. I did some testing with multiple devices on a single UART channel which appeared to work when only one primary device talks and all other devices only listen and never talk. Will look into SPI chaining though. I have absolutely no experience regarding the torque that the small motor will be able to provide, but I am ready to iterate on the design. That's the part I enjoy a lot in such projects, build, find problems, learn, change.

 –
